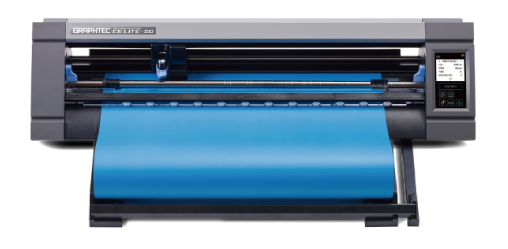

CE LITE-50 CUTTING PLOTTER

Expand the market of business use, small office & shop.

CE LITE-50 CUTTING PLOTTER

CE LITE-50 CUTTING PLOTTER

Superior quality, high reliability and affordable price.
Best suitable cutting plotter which is required high quality with small volume for office, store and heat transfer, automotive sign, etc.

Specifications:

Item
CE LITE-50
Pen type
Fiber-tip or ballpoint pen available in market (*3)
Media type
up to 0.1mm thick self-adhesive film (vinyl/fluorescent/reflective) * high-intensity reflective film is excluded
Interface
USB2.0
Storage device (external input)
USB memory
Power source
100 - 240 V AC, adapter output 24 V DC (2A)
Power consumption
32 W
Operating environment
10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment
16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)
Approx. 784 x 227 x 164 mm (without roll media stocker)
Weight
Approx. 8.0 kg (without roll media stocker)
Maximum cutting area (W x L)(*1)
498 mm x 3 m
Compatible OS(*4)
Windows 10 / 8.1/8/7 Mac OS X 10.6 to macOS 10.13(High Sierra) (Graphtec Studio : 10.6 - 10.13, Cutting Master 4 10.7 - 10.13)
Supported software/ Driver(*5)
Cutting Master 4, Graphtec Pro Studio(*6), Graphtec Studio (for Mac),Windows Driver
Cutting area of guaranteed accuracy (W x L)(*1)
478 mm x 1 m
Mountable media width(*2)
Max. 508 mm Min. 210 mm (A4 portrait orientation)
Mountable roll media type (diameter)
2 inch paper tube : Max. diameter 150 mm, Min. diameter 52.8 mm
Mountable roll media type (weight)
Max. 2.5 kg
Maximum cutting speed
500 mm/s in all direction
Maximum cutting force
2.1 N (210 gf)
Blade type
Supersteel
