CHAMFER – PANEL RAISE

We have a two flute chamfering cutter is supplied with two bearings. The TB504 bearing produces a chamfer with a quirk, whilst the TB748 bearing cuts a plain chamfer. The profile can be used to produce decorative edges and may also be used to produce a small panel raise.

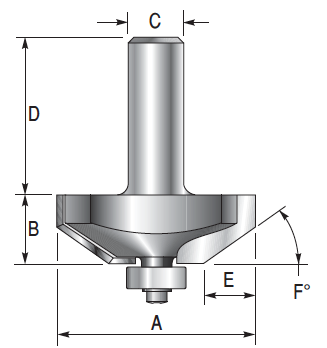

Part No.           A             B           C         D           E             F°

T1916B          41.0mm    15mm    1/4      32mm    11mm     35°

T1916B 1/2    41.0mm    15mm    1/2      40mm    11mm     35°



V GROOVE

Two flute grooving cutters with 60 or 90 included angle. Uses include lettering and sign work, chamfering panel edges, grooving and scoring panel design. Most V groove cutters in this range have a 0.75mm flat on the bottom of the V except those marked

T106 cutter has a V point and is suitable for engraving.

T114-8 and T114 1/2 cutters have a 1.3mm flat on the bottom.



ENGRAVING BIT – 3 FLUTE

We also offer a three flute cutter is ideal for lettering and decorative engraving. The solid carbide cutting head cuts to a fine ‘V’ point and produces clean cuts without feather edging. Available in 60 or 90 included angle.
