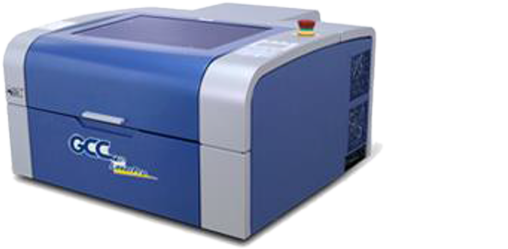

GCC C180II LASER ENGRAVER
The C180II is designed to provide an enjoyable engraving experience. Underneath the stylish exterior is a full 18" x 12" (458 x 305 mm) working area. Engraving depth can be easily extended from the normal 4 inches to 6 inches in less than a minute.
Specifications:
C180II
Throughput*
176.3 in2 / hr (1137 cm2 / hr)
Speed Control
Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
Power Control
Adjustable from 0~100% (Up to 16 color-linked power settings per job)
Distance Accuracy
0.254 mm or 0.1% of move. whichever is greater
Z-Axis Movement
Automatic
Focus Lens
Standard 2.0", optional 1.5" available
Resolution (DPI)
Available 125, 250, 300, 380, 500, 600, 760, 1000
Computer Interface
Standard printer port and USB 2.0** port
Compatible Operating Systems
MS Windows
Memory Buffer
32 MB standard
Work Area
18 in. x12 in. (458 mm x 305 mm)
Display Panel
4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
Safety
Class 2 for red pointer
Facility Requirements
Electrical
Below 40 Watt, 100V-240 Volt AC Auto Switching; 40 Watt and above, 200-240 Volt AC Auto Switching
Power Consumption
700W-2640W
Air Exhaust System
External exhaust system required , one 4" connection on the back of the machine
Max. Part Size (W x L x H)
18 in. x 12 in. x 6 in. (458 mm x 305 mm x 152 mm)
Table Size
20.4 in. x14.7 in. (520 mm x 375 mm)
Dimensions (W x L x H)
29.1 in. x 30.7 in. x 16.1 in. (740 mm x 780 mm x 410 mm)
Laser Source
12 to 40 Watt Sealed CO2 Laser
Cooling
Air-cooled, Operating environment temperature 15°-30°C (60°-86°F)
Drive
Closed-loop DC Servo Control
Maximum Motor Speed
40 IPS
