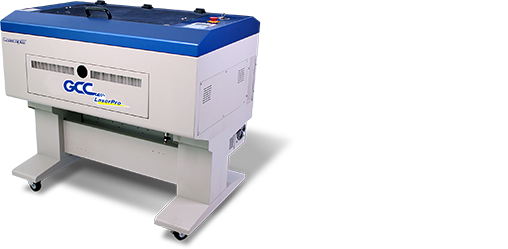

GCC MERCURYIII LASER ENGRAVER
The servo motor enables fast movement of lens carriage while maintaining accuracy over time, giving you reliable and dependable results. Mercury III is reinforced with new features, including key switch, user-friendly control panel, and SmartCENTER.
Specifications:
Mercury III
ME-12
ME-25
ME-40
ME-T60i
Drive
Closed-loop DC Servo Control
Maximum Speed*
42 IPS
Throughput*
166.3 in2 / hr (1072.8 cm2 / hr)
Speed Control
Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
Power Control
Adjustable from 0 -100% (Up to 16 color-linked power settings per job)
Distance Accuracy
0.254mm or 0.1% of move, whichever is greater
Z-Axis Movement
Automatic
Focus lens
Standard 2.0", optional 1.5", 2.5" & 4.0" available
Resolution (DPI)
Available 125, 250, 300, 380, 500, 600, 760, 1000
Computer Interface
Standard printer port and USB 2.0** port
Laser Source
12W
25W
40W
60W
Compatible Operating Systems
MS Windows
Memory Buffer
32MB standard
Display Panel
4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
Safety
Class 2 for red pointer
Standard Feature
Auto Focus
V
Red Dot Pointer
V
Pass Through Doors
V
3D and Stamp Mode
V
Facility Requirements
Laser Source
Sealed CO2 Laser
Operation Voltage
Below 40 Watt, 100 -240 Volt AC Auto Switching 40 Watt and above, 200 -240 Volt AC Auto Switching
Power Consumption
700W
880W
1740W
2000W
Air Exhaust System
External exhaust system required,one 4" connection on the back of the machine.
Cooling
Air-cooled, Operating environment temperature 15°-30°C (60°-86°F)
Work Area
25 x 18 in. (635 x 458 mm)
Maximum Part Size (W x L x H) All doors closed
27 x 19 x 6.5 in. (685 x 482 x 165 mm)
Maximum Part Size (W x L x H) All doors open
27 x ∞ x 6.5 in. (685 x ∞x 165 mm)
Table Size
31.1 x 20.9 in. (790 x 530 mm)
Dimensions (WxDxH)
44.3 x 28.3 x 39.6 in. (1125 x 720 x 1005 mm)
