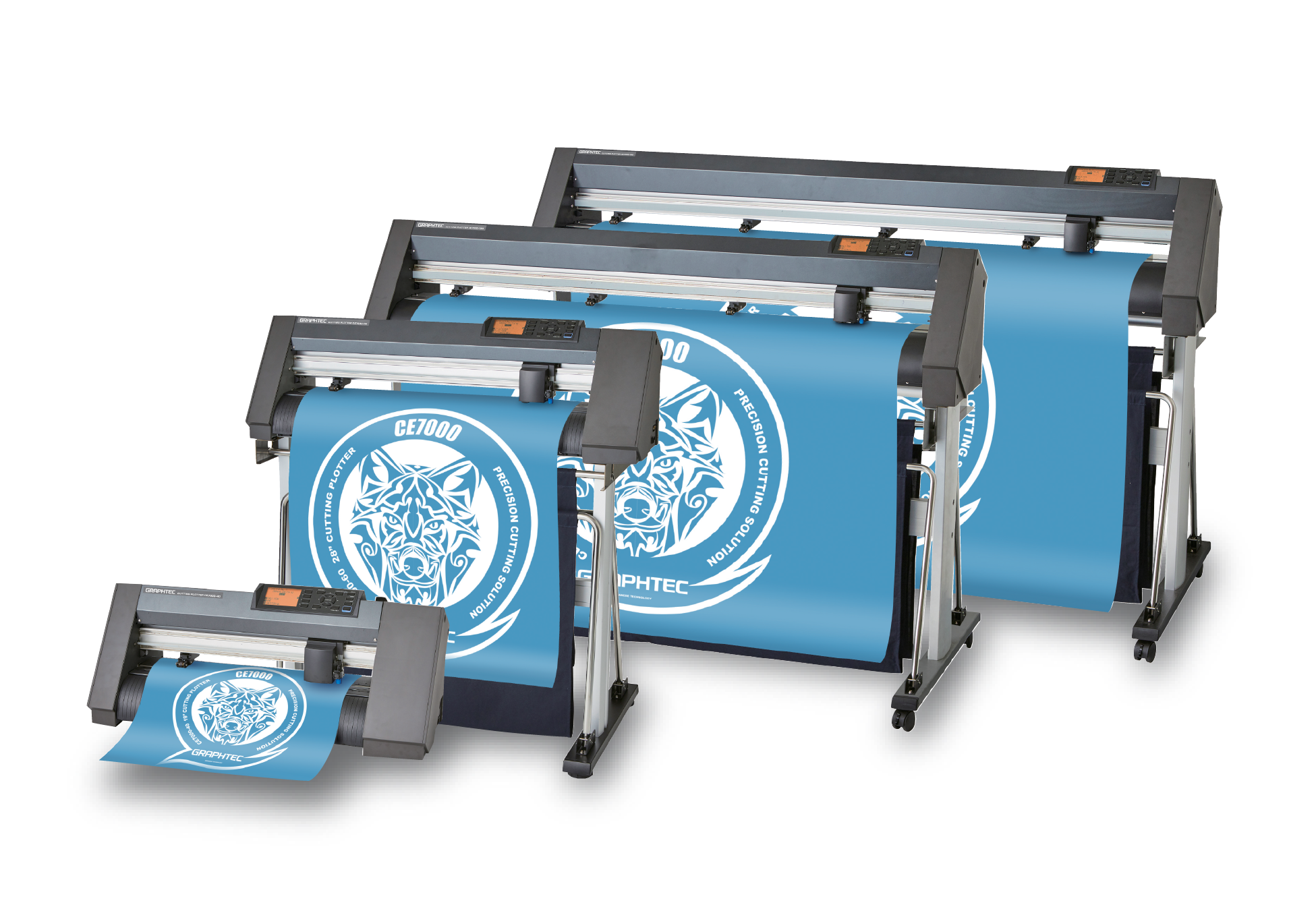

CE7000 SERIES CUTTING PLOTTER
The CE7000 series sets the standard for high performance, low cost cutting plotters.
EQUIPMENT
- BOFA 2000 IQ FUME EXTRACTION UNIT
- INDOOR ROTATORS
- M12 ACRYLIC PANEL BENDING MACHINE
- ACRYLIC PANEL EDGE TRIMMER
- ACRYLIC PANEL CUTTING MACHINE
- EYELET HAND PRESS
- ACRYLIC BENDING MACHINE
- UNIST MIST LUBRICATING SYSTEM
- UNIST SAW BLADE LUBE SYSTEMS
- SILHOUETTE CAMEO 4 CUTTING PLOTTER
- SILHOUETTE CURIO CUTTING SYSTEM
- SILHOUETTE MINT CUSTOM STAMP MAKER
-
GCC LASER ENGRAVING & CUTTING MACHINES
-
GRAPHTEC CUTTING PLOTTER
-
ROYAL SOVEREIGN LAMINATORS
newsletter signup
CALL US
0097 14 280 64 10
CE7000 SERIES CUTTING PLOTTER
It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE7000 series improve your work efficiency and increases productivity.
Specifications:
Item
CE7000-40
CE7000-60
CE7000-130
CE7000-160
Minimum character size
Approx. 5 mm alphanumeric (varies depending on character font and type of media)
Repeatability
Max. 0.1 mm in plot up to 2 m *1
Mountable number of tools
1 tool
Blade type
Supersteel
Pen type
Oil-based ballpoint, Water-based fiber-tip pen
Media type
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cutting
Yes (performed by force control)
Interface
RS-232C / USB2.0 (Full Speed)
Buffer memory
2 MB
Command sets
GP-GL / HP-GLâ„¢ emulation (Set by the menu or the command, and selects from GP-GL, HP-GLâ„¢, or Auto detect)
CPU
32-bit CPU
Display
Graphic type LCD with backlight (240dots x 128dots)
Registration mark sensing system
Scans the mark by optical sensor (ARMS5.0)
Power source
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption
120 VA
Operating environment (Guaranteed accuracy)
10 to 35 ºC, 35 to 75 % R.H. (non-condensing) (16 to 32 ºC, 35 to 70 % R.H. (non-condensing))
External dimensions (W x D x H, Approx. [mm])
672 x 338 x 266
900 x 593 x 1046
1541 x 736 x 1250
Weight
10.5 kg
21 kg (including stand)
40.5 kg (including stand)
Included software *2
Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller
Compatible OS *2
Windows 8 / 7 / Vista / XP, Mac OS 10.5.8 to 10.8
Compatible Standards
Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A
Configuration
Grit rolling type, digital servo drive
Max. cutting area (Guaranteed cutting area)
375 mm x 50 m *1 (356 mm x 2 m *1)
603 mm x 50 m *1 (584 mm x 5 m *1)
1213 mm x 50 m *1 (1194 mm x 5 m *1)
Mark scanning margin
Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller
2 rollers
2 rollers
3 rollers
4 rollers
Max. cutting speed
600 mm/s (All directions)
900 mm/s (at 45º direction)
1000 mm/s (at 45º direction)
Max. acceleration
21.2 m/s2 (at 45º direction)
13.9 m/s2 (at 45º direction)
Max. cutting force (Instantaneous max. force)
2.94 N (300 gf) in 31 steps (3.2 N (330 gf))
4.41 N (450 gf) in 38 steps (4.9 N (500 gf))
4.41 N (450 gf) in 38 steps (4.9 N (500 gf))
