Description

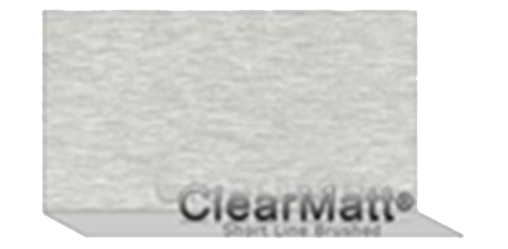

ClearMatt ® Brush Short Line [SL] is designed specifically for general use for interior applications. ClearMatt ® Brush SL has a thin anodize film thick-ness that makes it quite versatile for many applications while providing the design with a lower cost alternative. The brushed texture allows the designer an elegant finish that can complement many other materials.

Applications

Appliances
Laminated Letters
Signage
Store Fronts
Backsplashes
Wall Panels
Door Trim

Aluminum Properties

Alloy: 5205 [Same as 5005]
Temper: H18, H34
Finish: Short Line Brush

Mechanical Properties

Temper: H18
UTS: 27 ksi min [186MPa]
YTS: Not Applicable
Elongation: 1% min
T Bend: 3t min
Temper: H34
UTS: 20-26 ksi [138-179 MPa]
YTS: 15 min [103 MPa]
Elongation: 3% min
T Bend: 1t min

Anodize Film Thickness

Standard Film:
0.125 mil Nominal *3.2 μm+

Anodize Finish Properties

Optical: Not Applicable
Gloss: Medium Matte
Color : Clear Natural
Color Target: Not Applicable
UV Stable: Yes
Seal: S3, Duplex Seal III
Quality Grade: 2
Other: None

Chemical Properties

Si: 0.30 %
Fe: 0.70 %
Cu: 0.20 %
Mn: 0.20 %
Mg: 0.50—1.10 %
Cr: 0.10 %
Zn: 0.25 %
Other: 0.15 %
Al: Remainder

Industry Standards

ClearMatt®Brush meets RoHS Compliant and ISO 9001 standards

Sustainability and LEED (Leadership in Energy and Environmental Design)

Recycled Content:
100% recyclable
Post-Consumer Content = 1.6%
Post-Industrial Content = 12.9%
Volatile Organic Compounds:
Anodized aluminum does not contain any VOC’s.
