Description

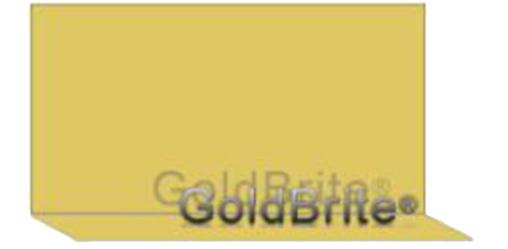

Many designers admire the deep rich color and textures of brass, and it’s an alloy that offers many other appealing properties. But those same aesthetic looks can be obtained using GoldBrite® Brush SL which is the solution. Along with the rich gold-brass appearance it provides the engineer with reduced weight (60% less than brass). That means more metal for your money, and lowering inventory and freight costs. And to top it off, GoldBrite® Brush SL material is UV stable.

Applications

Gas Station Canopies
Heaters
Signage
Store Fronts
Backsplashes
Wall Panels
Window Mutton Bars

Aluminum Properties

Alloy: 5205 [Same as 5005]
Temper: H18, H34
Finish: Short Line Brush

Mechanical Properties

Temper: H18
UTS: 27 ksi min [186MPa]
YTS: Not Applicable
Elongation: 1% min
T Bend: 3t min
Temper: H34
UTS: 20-26 ksi [138-179 MPa]
YTS: 15 min [103 MPa]
Elongation: 3% min
T Bend: 1t min

Anodize Film Thickness

Standard Film:
0.250 mil Nominal *6.4 μm+

Anodize Finish Properties

Optical: Brightened
Gloss: Not Applicable
Color : D092, Medium Gold
Color Target: Delta E ≤ 5
UV Stable: Yes
Seal: S3, Duplex Seal III
Quality Grade: 2
Other: None

Chemical Properties

Si: 0.30 %
Fe: 0.70 %
Cu: 0.20 %
Mn: 0.20 %
Mg: 0.50—1.10 %
Cr: 0.10 %
Zn: 0.25 %
Other: 0.15 %
Al: Remainder

Industry Standards

GoldBrite® Brush SL meets RoHS Compliant and ISO 9001 standards.

Sustainability and LEED (Leadership in Energy and Environmental Design)

Recycled Content:
100% recyclable
Post-Consumer Content = 1.6%
Post-Industrial Content = 12.9%
Volatile Organic Compounds:
Anodized aluminum does not contain any VOC’s.
