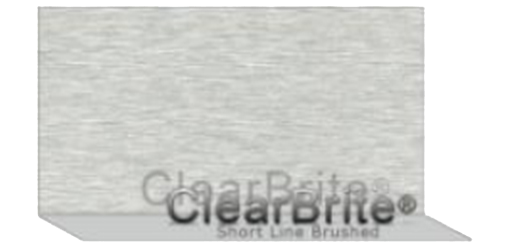

Description

ClearBrite® Brush Short Line [SL] is designed specifically for general use for interior applications. ClearBrite® Brush SL has a thin anodize film thick-ness that makes it quite versatile for many applications while providing the design with a lower cost alternative. The brushed texture allows the designer an elegant finish that can complement many other materials.

Applications

Appliances
Wall panels
Signage
Laminated Letters
Backsplashes
Store Fronts
Door Trim

Aluminum Properties

Alloy: 5205 [Same as 5005]
Temper: H18, H34
Finish: Short Line Brush

Mechanical Properties

Temper: H18
UTS: 27 ksi min [186MPa]
YTS: Not Applicable
Elongation: 1% min
T Bend: 3t min
Temper: H34
UTS: 20-26 ksi [138-179 MPa]
YTS: 15 min [103 MPa]
Elongation: 3% min
T Bend: 1t min

Anodize Film Thickness

Standard Film:
0.125 mil Nominal *3.2 μm+

Anodize Finish Properties

Optical: Brightened
Gloss: Not Applicable
Color : Clear Natural
Color Target: Not Applicable
UV Stable: Yes
Seal: S3, Duplex Seal III
Quality Grade: 2
Other: None

Chemical Properties

Si: 0.30 %
Fe: 0.70 %
Cu: 0.20 %
Mn: 0.20 %
Mg: 0.50—1.10 %
Cr: 0.10 %
Zn: 0.25 %
Other: 0.15 %
Al: Remainder

Industry Standards

ClearBrite® meets RoHS Compliant and ISO 9001 standards.

Sustainability and LEED (Leadership in Energy and Environmental Design)

Recycled Content:
100% recyclable
Post-Consumer Content = 1.6%
Post-Industrial Content = 12.9%
Volatile Organic Compounds:
Anodized aluminum does not contain any VOC’s.
